Watch the refinery sequence

A 24-second preview of the Shell Key refinery demonstration. Press Play to watch, or use the free demo to explore the timeline yourself.

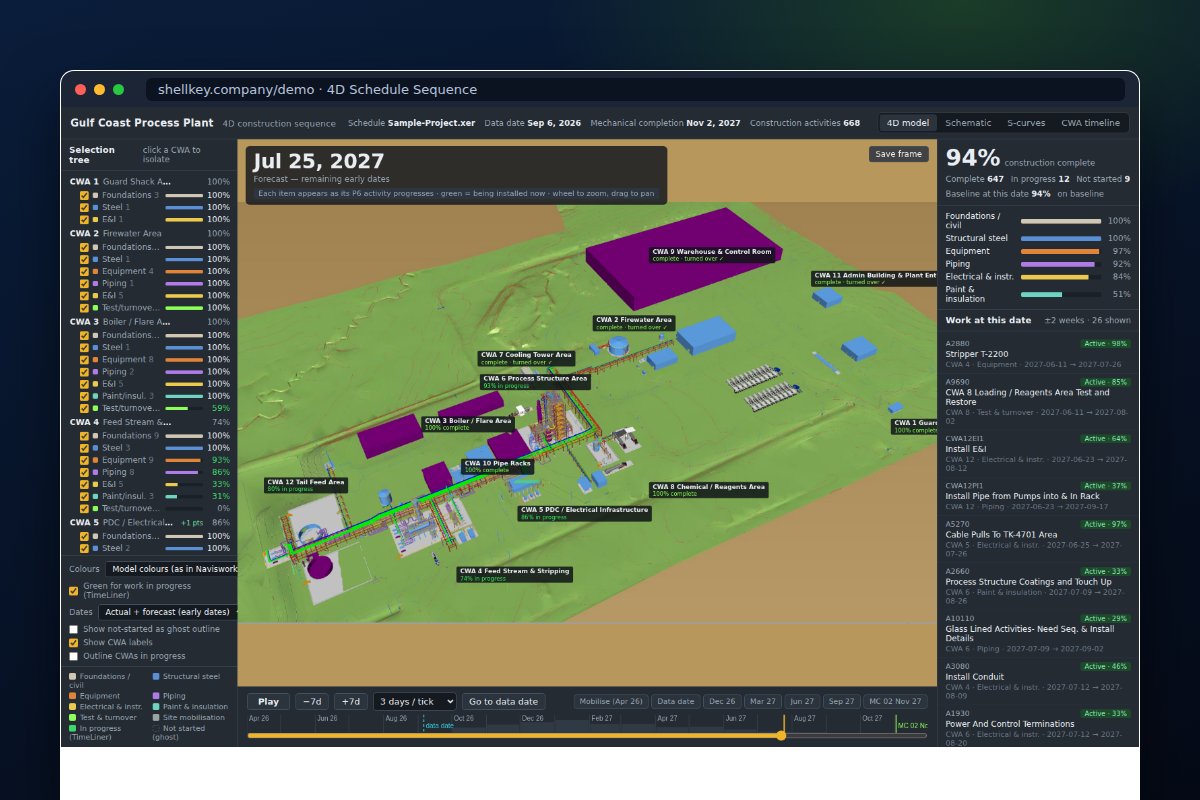

View screenshot full size Open video in a new tab
Available Now

4D Schedule Sequence

Your P6 schedule on your plot plan, animated week by week.

A service, not just software. Send your P6 or MS Project schedule and a plot plan or model image; Shell Key builds a 4D construction sequence you can play forward by day, week or month — every activity appearing where it happens, green while it is being installed, with S-curves and a CWA timeline. Updated every week from your schedule update.

  • Built from your schedule and plot plan — nothing to install
  • Play the build-up by CWA, discipline, actual and forecast
  • S-curves, CWA timeline and work-at-this-date list
  • Updated weekly by Shell Key from your progress update
$75first month, then $295 / month · built and updated weekly by Shell Key
Try the free demo Order by Request

Secure checkout by PayPal — cards accepted without a PayPal account. Your access details are emailed the same business day.

What it is

A 4D (schedule-driven) construction sequence of your project that runs in a browser. Foundations, steel, equipment, piping, E&I, paint and test/turnover appear on the plot as their P6 activities progress, colored by discipline, green while in progress, with baseline comparison and a forecast to mechanical completion.

Who it is for

Owners, EPCs and contractors who need leadership, the field and the client to see the plan the same way — without a Navisworks license on every desk.

What you get

Shell Key builds the sequence from your XER / MPP and plot plan or model image within a week, then refreshes it after every schedule update. Delivered as a private link you can share; save-frame images for reports. Try the demo — it is a sample refinery expansion with 81 activities and 20 schedule-connected images. Demo changes last only for the current session.

How billing works

$75 for the first month (includes the initial build), then $295 a month while the project is active, cancel any time by emailing [email protected]. Larger projects or multiple areas are quoted.

Questions before you commit?

Call +1 (337) 254-8321 or email [email protected]. A real person, same day.
